Precise and reliable flow measurement is fundamental across numerous industrial sectors, including oil & gas, water treatment, pharmaceuticals, food processing, and chemicals. It ensures optimal process control, consistent product quality, regulatory compliance, and operational safety. At the heart of this measurement process are flow meters, which are specialized instruments for measuring flow of liquids and gases.
In this in-depth guide, we will explore the types of flow meters, their applications, and how to calibrate each flow meter measuring device accurately to meet industry standards.
What Are calibration methods?
A flow meter is a precision instrument designed to measure the amount or rate at which a fluid (liquid or gas) moves through a system. There are various flow measurement devices that function based on different physical principles such as pressure differential, velocity, mass, and electromagnetic induction.
What is flow measurement? Flow measurement refers to the quantification of bulk fluid movement, typically expressed in litres per minute (L/min), cubic meters per hour (m3/h), or kilograms per second (kg/s), depending on the medium and industry requirements.

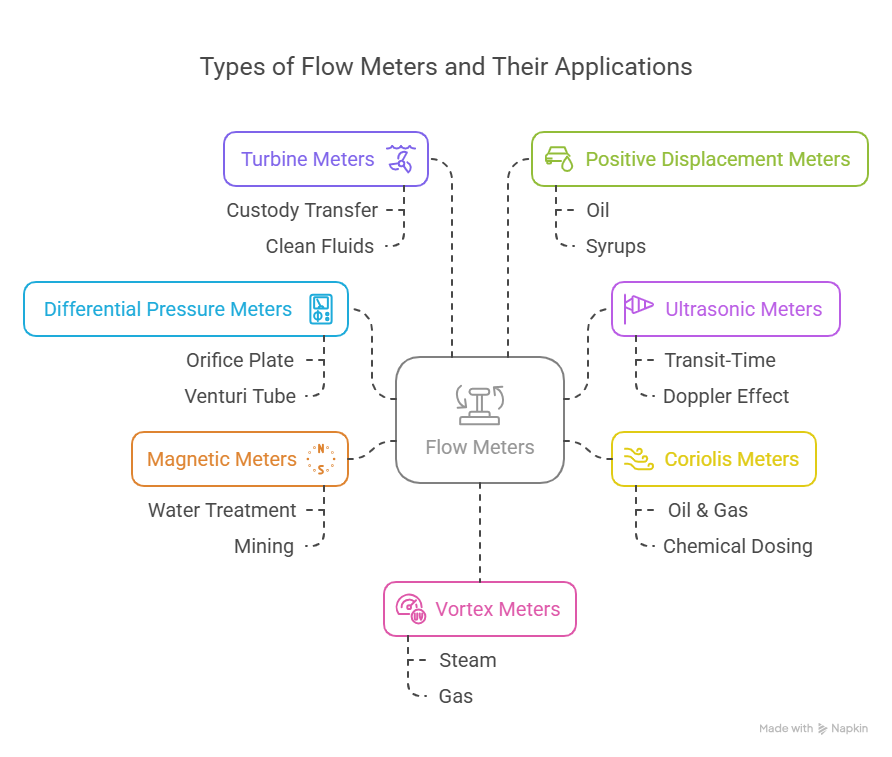

Types of flow meters
1. Differential pressure flow meters
Working principle: These flow meter devices operate by measuring the pressure drop across an obstruction (e.g., orifice plate, venturi tube, or flow nozzle) within the pipe.
Applications: Suitable for a wide range of fluids including water, steam, gases, and hydrocarbons in sectors such as HVAC, water management, and petrochemicals.
Advantages: Robust construction, cost-effective, suitable for high-pressure applications.
Calibration note: Must be calibrated against a high-accuracy reference under controlled conditions, typically using a gravimetric or volumetric method.
2. Orifice plate flow meters
Description: A subset of differential pressure meters, these use a thin plate with a central hole to create pressure differential.
Applications: Commonly used for steam and gas measurement.
Flow meter measures: Volume or mass flow depending on paired instrumentation (e.g., temperature and pressure sensors).
3. Ultrasonic flow meters
Principle: Measure fluid velocity using the transit-time or Doppler effect of ultrasonic waves.
Applications: Ideal for clean water, wastewater, and non-intrusive applications such as pipeline monitoring.
Flow measurement instrument yype: Non-invasive and suitable for retrofitting.
Calibration tips: Factory-calibrated but periodic verification is recommended. On-site calibration requires precise alignment of transducers and known reference flows.
4. Coriolis flow meters
Working mechanism: Detects mass flow based on the Coriolis force generated in vibrating tubes.
Applications: High-accuracy applications in oil & gas, chemical dosing, and food & beverage sectors.
Flow gauge characteristics: Measures mass flow, density, and temperature simultaneously.
Calibration guidelines: Requires standard liquid calibration rigs and traceable standards.
5. Magnetic (Mag) flow meters
Technology: Uses Faraday’s law of electromagnetic induction to measure the flow of conductive liquids.
Industries: Water treatment, mining, pulp and paper, and chemical processing.
What is a flow meter good for here? Handling slurries, corrosive fluids, and dirty water.
Maintenance: No moving parts—low maintenance and long service life.
6. Turbine flow meters
How the flow meter measures: Fluid movement rotates a turbine; rotational speed correlates with volumetric flow rate.
Applications: Custody transfer, clean fluids like fuels and water.
Calibration advice: Sensitive to viscosity; must be calibrated under application-matched conditions.
7. Positive displacement (PD) flow meters
Functionality: Captures known volumes of fluid within chambers.
Industrial uses: Oil, syrups, and other viscous fluids.
Flow meter device accuracy: Very high, even at low flow rates.
8. Vortex flow meters
Operation: Detects vortices shed by a bluff body placed in the fluid stream.
Best use cases: Steam, gas, and clean water systems.
Key feature: Resistant to temperature and pressure variations.
Calibration of flow meters
Proper calibration ensures that a flow measuring device consistently provides accurate and repeatable results. Calibration involves comparing the flow meter measures with a traceable standard under controlled conditions.
Key calibration methods
- Gravimetric calibration: Measures the mass of liquid collected over time.
- Volumetric calibration: Determines volume using precision containers or provers.
- Master meter calibration: Compares readings with a calibrated reference meter.
- Simulated flow systems: Often used for high-pressure gas flow meters.
Calibration frequency and standards
- Routine intervals: Typically every 6–12 months depending on industry and application criticality.
- Standards: ISO/IEC 17025 accreditation ensures compliance with global calibration norms.
Best practices
- Always use clean, stable fluids for calibration.
- Conduct calibration in a temperature-controlled environment.
- Document all procedures and outcomes for quality audits.
- Use trained professionals or certified calibration labs like Prism Calibration.
Why calibration matters
Inaccurate flow measurement can lead to:
- Process inefficiencies
- Regulatory non-compliance
- Financial losses in custody transfer
- Safety risks in critical systems
By routinely calibrating your flow meter measuring device, you ensure operational excellence, safety, and product quality.
Partner with prism calibration
At Prism Calibration, we offer comprehensive calibration, validation, and testing services for all types of flow measurement instruments. Our facilities are equipped with high-accuracy calibration rigs traceable to national and international standards, ensuring precise results every time.
Whether you require flow meter calibration, system validation, or periodic testing, our team of experts is ready to assist you in maintaining measurement integrity.
Contact us today to schedule your calibration service and ensure your instruments are performing to the highest standards.
Conclusion
Understanding the various types of flow meters and their calibration methods is crucial for industries that rely on accurate flow measurement. From differential pressure to Coriolis and ultrasonic flow meter devices, each technology serves specific applications and requires unique calibration practices.
Regular calibration not only ensures compliance and safety but also optimises operational efficiency and accuracy. Investing in professional calibration services from trusted partners like Prism Calibration guarantees the integrity and reliability of your flow measuring devices.
FAQs
A flow meter is an instrument used to measure the flow rate or volume of a fluid passing through a pipe. It works by using various technologies such as differential pressure, electromagnetic induction, or ultrasonic waves to calculate flow.
Calibration ensures that a flow meter measuring device provides accurate and consistent readings. It helps maintain product quality, operational efficiency, and compliance with industry standards.
Most flow meters should be calibrated every 6 to 12 months. The frequency depends on the type of meter, its application, and regulatory requirements.
Yes, many flow measurement instruments can be calibrated on-site using portable calibration equipment. However, for high-precision needs, lab-based calibration may be preferred.
Industries such as oil and gas, water treatment, pharmaceuticals, food and beverage, and chemical processing heavily rely on accurate flow measurement devices and benefit significantly from regular calibration.
