In various industries, from manufacturing and pharmaceuticals to environmental monitoring and research, the reliability and accuracy of measurements are paramount. This accuracy hinges on a fundamental process: instrument calibration. Ensuring that your measuring instruments provide trustworthy data is not just best practice; it’s often a regulatory requirement and a cornerstone of quality control.
This comprehensive guide will delve into the key principles of instrument calibration, explaining why it’s essential and outlining the fundamental concepts that underpin this critical process. While we’ll touch upon specific examples like torque wrench calibration, the core principles discussed apply to a wide range of measuring devices.

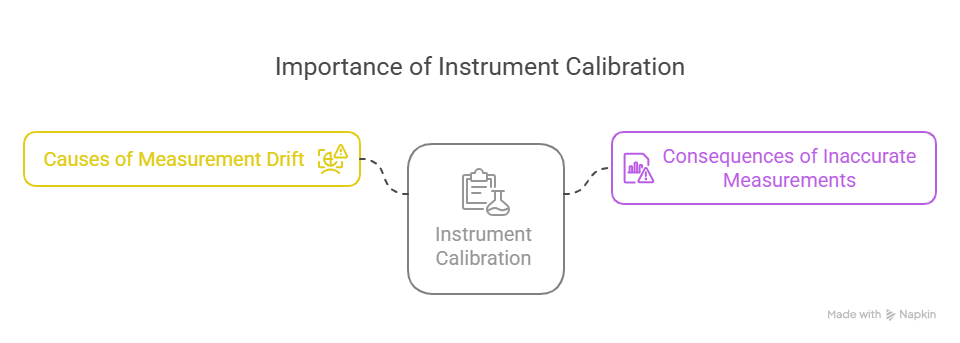

Why is instrument calibration absolutely essential?
The need for instrument calibration stems from the inherent possibility of measurement drift and inaccuracies over time. Several factors contribute to this:
- Wear and tear: Mechanical and electronic components degrade with use.
- Environmental factors: Temperature fluctuations, humidity, and vibrations can affect instrument performance.
- Electrical component drift: Electronic components can change their characteristics over time.
- Mechanical stress: Repeated use or accidental impacts can alter mechanical alignments.
Without regular calibration, the readings from your instruments may deviate significantly from the true values, leading to:
- Compromised product quality: Inaccurate measurements in manufacturing can result in defective products.
- Safety hazards: Incorrect readings in safety-critical applications can lead to dangerous situations.
- Regulatory non-compliance: Many industries have strict regulations requiring documented calibration of measuring equipment.
- Increased costs: Errors due to inaccurate measurements can lead to rework, waste, and potential legal liabilities.
- Poor decision-making: Relying on faulty data can lead to incorrect analyses and flawed decisions.

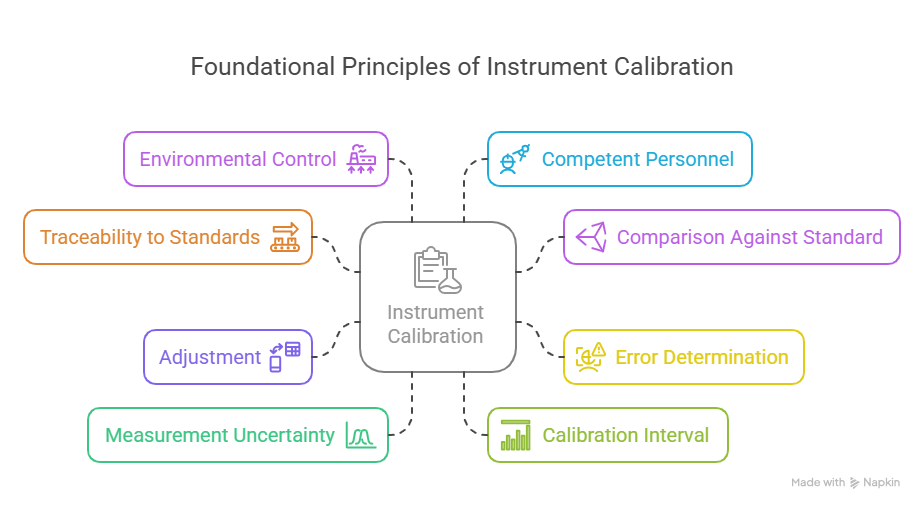

The foundational principles of instrument calibration
Understanding the core principles of instrument calibration is crucial for appreciating its importance and ensuring it’s performed correctly.
- Traceability to standards:
- Calibration must establish an unbroken chain of comparisons to a recognized standard. This means that the reference standards used to calibrate your instruments are themselves calibrated against even higher-level standards, ultimately traceable to national or international measurement standards (e.g., SI units maintained by organizations like NIST, NPL, etc.).
- For example, when performing torque tool calibration, the torque measuring device used for calibration must have a valid calibration certificate demonstrating its traceability to a recognized torque standard.
- Comparison against a known standard:
- The fundamental process of calibration involves comparing the readings of the instrument being calibrated (the Unit Under Test or UUT) against the readings of a known, more accurate standard.
- Determining and documenting errors:
- Calibration identifies and quantifies the errors or deviations between the UUT’s readings and the standard’s readings across the instrument’s operating range.
- This includes determining the magnitude and direction of the error (torque wrench measurement deviations are recorded at various torque points).
- All calibration results, including the identified errors, the standards used, and the environmental conditions, must be meticulously documented in a calibration certificate.
- Adjustment (When possible and necessary):
- Based on the identified errors, adjustments may be made to the UUT to minimize these deviations and bring the instrument’s readings within acceptable tolerance limits.
- For instance, a torque wrench might have an adjustment mechanism to correct its output if it’s found to be consistently reading high or low.
- It’s important to note that not all instruments can be adjusted, and sometimes, if the error is too large, the instrument may need repair or replacement.
- Uncertainty of measurement:
- No measurement is perfect, and every calibration process has an associated uncertainty. This uncertainty reflects the range within which the true value of the measured quantity is likely to lie.
- A comprehensive calibration certificate will include an estimation of the measurement uncertainty, taking into account factors like the accuracy of the reference standard, the resolution of the UUT, and environmental conditions. Understanding the uncertainty is crucial for interpreting the calibration results.
- Calibration interval:
- Instruments do not remain calibrated indefinitely. The period between calibrations, known as the calibration interval, is crucial for maintaining accuracy.
- The appropriate calibration interval depends on factors such as the instrument’s type, usage frequency, operating environment, required accuracy, and manufacturer recommendations. Regular assessment of calibration data can help optimize these intervals. For example, a frequently used torque wrench in a harsh environment might require more frequent torque tool calibration.
- Environmental control:
- Environmental conditions during calibration can significantly impact the results. Factors like temperature, humidity, and pressure should be controlled and documented as they can influence the performance of both the UUT and the calibration standards.
- Competent personnel:
- Calibration should be performed by trained and competent personnel who understand the principles of measurement, the operation of the calibration equipment, and the specific requirements for calibrating different types of instruments.
Applying the principles: torque wrench calibration as an example
Let’s see how these principles apply specifically to torque wrench calibration:
- Traceability: The calibrated torque tester used to calibrate the wrench must have a valid calibration certificate traceable to national torque standards.
- Comparison: The torque wrench is tested by applying various known torques (the standard) using the tester, and the wrench’s readings (torque wrench measurement) are compared.
- Error determination: The difference between the tester’s reading and the wrench’s reading at each test point reveals the error in the torque wrench accuracy.
- Adjustment: If the error exceeds the acceptable tolerance, the torque wrench is adjusted using its internal mechanism.
- Uncertainty: The calibration certificate for the torque wrench will include the uncertainty associated with the calibration process.
- Interval: The frequency of torque tool calibration will depend on the wrench’s usage and the criticality of its applications.
Ensuring ongoing measurement accuracy
Calibration is not a one-time event but an ongoing process. To maintain the accuracy of your instruments:
- Follow recommended calibration intervals: Adhere to the established calibration schedule.
- Handle instruments carefully: Prevent damage from mishandling or improper storage.
- Monitor Instrument Performance: Look for signs of drift or erratic behavior between calibrations.
- Maintain calibration records: Keep accurate and up-to-date records of all calibrations.
Partnering for reliable instrument Calibration
Mastering the basics of instrument calibration is the first step towards ensuring the accuracy and reliability of your measurements. For many organizations, entrusting this critical task to experienced calibration service providers is the most efficient and effective way to guarantee compliance, minimize errors, and maintain the integrity of their processes. These providers possess the necessary expertise, calibrated standards, and controlled environments to perform accurate and traceable calibrations across a wide range of instruments.
Conclusion
Instrument calibration is not merely a technical procedure; it’s a fundamental commitment to data integrity, product quality, safety, and regulatory compliance. By understanding and adhering to the key principles of traceability, comparison, error determination, adjustment, uncertainty, and appropriate calibration intervals, organizations can ensure that their measuring instruments provide trustworthy and accurate data.
Whether it’s the precise tightening of fasteners using a calibrated instrument or the accurate measurement of critical parameters in other applications, the principles of calibration form the bedrock of reliable measurements and informed decision-making. Investing in proper instrument calibration is an investment in the accuracy, efficiency, and ultimately, the success of your operations.
Frequently asked questions
The primary purpose of instrument calibration is to ensure that a measuring instrument provides readings that are accurate and consistent with known standards. It verifies the instrument’s performance and identifies any errors or deviations.
The calibration frequency depends on several factors, including the type of instrument, its usage, the operating environment, the required accuracy, and manufacturer recommendations. As a general guideline, consider annual calibration, but more frequent calibration may be necessary for critical applications or harsh environments. For a torque wrench, usage frequency and the criticality of the application are key factors in determining the torque tool calibration interval.
Traceability refers to the unbroken chain of comparisons of a measurement back to a known standard, typically a national or international standard. This ensures that the calibration is performed using reference standards with documented accuracy and a clear lineage to fundamental units of measurement.
A calibration certificate is a formal document that records the results of an instrument calibration. It typically includes information about the instrument, the standards used, the calibration date, the measured values, the errors, the measurement uncertainty, and the signature of the technician. It serves as evidence that the instrument has been calibrated and provides essential information about its accuracy at the time of calibration.
Measurement uncertainty is an estimate of the range within which the true value of the measured quantity is likely to lie. It acknowledges that no measurement is perfect and quantifies the degree of doubt associated with the calibration result. Understanding the uncertainty is crucial for interpreting the significance of the calibration data.
While it might be possible for some simpler instruments, calibrating instruments accurately often requires specialized equipment, controlled environments, and technical expertise. For critical measurements and compliance with quality standards, it’s generally recommended to use accredited calibration service providers who can ensure traceability and provide reliable calibration certificates. For tools like a torque wrench, professional calibrate torque wrench services ensure accuracy using calibrated torque wrench measurement equipment.
When choosing a calibration service provider, look for accreditation to relevant standards (e.g., ISO/IEC 17025), traceability of their standards, experienced and trained technicians, a clear understanding of your specific instrument requirements, and comprehensive calibration certificates.
