ICH Q1A(R2) · EU GMP Annex 7 · WHO TRS 953 · NABL CC-2480
Stability Chamber
Validation Services
Gujarat's trusted stability chamber validation partner — ICH Q1A(R2), EU GMP Annex 7, WHO TRS 953, Schedule M compliant. Temperature & humidity mapping, uniformity verification, door/power failure study, IQ/OQ/PQ. Onsite across Gujarat.
GMP Validated
WHO · ICH · FDA
ICH Q1A(R2)
Stability Standard
— WHAT IS STABILITY CHAMBER VALIDATION —
Stability Chamber Validation —
Why ICH Q1A Demands It
Stability chamber validation is the documented proof that your temperature and humidity stability chamber maintains ICH-specified conditions uniformly — at every point of the chamber volume, continuously, throughout the stability study period. Without qualification, your stability data has no regulatory standing.
ICH Q1A(R2) mandates qualified stability chambers for all GMP studies
ICH Q1A(R2) Section 1.3 states that stability studies for regulatory submissions must be conducted in temperature/humidity-controlled storage conditions that are monitored and qualified. Unqualified chambers make stability data inadmissible to USFDA, EMA, CDSCO, TGA.
T&H excursion risks batch failure and product recall
An excursion beyond ICH acceptance criteria during a stability study requires a deviation investigation, may invalidate time-points, and can result in batch failure — a validated chamber with continuous monitoring prevents this risk.
Annual requalification required under EU GMP Annex 7
EU GMP Annex 7 requires all stability chambers to be requalified at minimum every 12 months, and after any modification, repair, or relocation — not doing so is an immediate GMP deficiency.
ICH Q1A Stability Chamber Acceptance Criteria
WHO TRS 953 / EU GMP Annex 7
ICH Long-Term (Zone I/II)
25°C ± 2°C / 60% RH ± 5% RH
ICH Intermediate
30°C ± 2°C / 65% RH ± 5% RH
ICH Zone IVb
30°C ± 2°C / 75% RH ± 5% RH
ICH Accelerated
40°C ± 2°C / 75% RH ± 5% RH
T&H spatial uniformity
±2°C / ±5% RH (max dev. from SP)
Data logger traceability
NABL CC-2480 calibrated
— WHAT YOU GET —
Every Stability Chamber Validation Includes
Onsite at Your Facility
Engineers arrive with NABL-calibrated T&H data loggers and all required instruments. No chamber removal needed. Testing scheduled around your stability schedule.
T&H Distribution Study (OQ)
Spatial and temporal T&H mapping with 9–16 data loggers at all ICH set points. Minimum 3 consecutive runs per ICH Q1A(R2) / WHO TRS 953.
Uniformity & Boundary Studies
T&H uniformity verification, door open/close study, power failure study, and alarm setpoint verification at all ICH set points.
Full GMP Validation Report
DQ/IQ/OQ/PQ protocols, T&H mapping data, uniformity analysis, boundary study results, NABL calibration certificates, deviations, CAPA — within 7 days.
7-Day Report Turnaround
Preliminary findings within 48 hours. Complete GMP validation report with all annexures delivered within 7 working days of site work.
NABL-Calibrated T&H Loggers
All temperature and humidity data loggers are NABL CC-2480 calibrated — mandatory for GMP stability studies under FDA 21 CFR Part 211.166 and ICH Q1A(R2).
Annual Requalification Program
Scheduled annual requalification with full T&H mapping, uniformity verification, and updated calibration certificates — EU GMP Annex 7 compliance guaranteed.
ICH CTD Dossier Ready Report
Report format accepted for ICH CTD Module 3.2.P.8 stability commitments in USFDA, EMA, TGA, Health Canada, and PMDA submissions.
Onsite Across Gujarat · ICH Q1A(R2) · WHO TRS 953
Ready to Validate Your Stability Chambers?
7-day report delivery · FDA, WHO, ICH and EU GMP accepted documentation
— OUR PROCESS —
Stability Chamber Validation Process
Design Qualification (DQ)
Review stability chamber specifications: chamber volume, T&H set points (ICH zones), control system, alarm functionality, back-up power, and data logging requirements. Validation Master Plan with scope, acceptance criteria, and ICH zone assignment documented.
Installation Qualification (IQ)
Verification that chamber, humidity generator, refrigeration unit, heater, control probe, chart recorder/data logger, alarms, and utility connections are installed per approved drawings and manufacturer requirements.

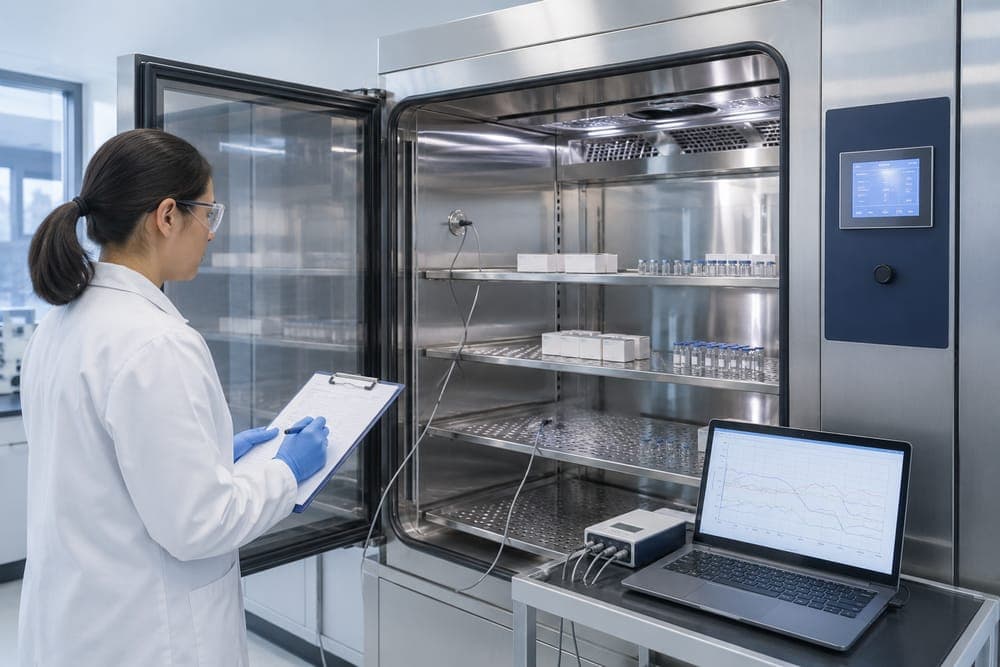

OQ — Temperature & Humidity Mapping
Spatial and temporal T&H distribution study with NABL-calibrated data loggers at all required ICH set points: 25°C/60%RH, 30°C/65%RH, 40°C/75%RH, 40°C/not less than 75%RH. Minimum 3 consecutive mapping runs per ICH Q1A(R2).
PQ — Uniformity & Boundary Studies
Uniformity verification at all ICH set points. Door open/close study (impact on T&H recovery time). Power failure study (T&H excursion limits). Alarm setpoint verification. Worst-case loading configuration study.
Deviation & CAPA Management
Any T&H excursions beyond acceptance criteria, failed alarm tests, or sensor failures documented as deviations with root cause analysis and CAPA. Retesting after CAPA before final report sign-off.
Validation Report Issued
Complete DQ/IQ/OQ/PQ report with T&H mapping data, uniformity analysis, door/power failure study results, data logger calibration certificates, deviation log, and conclusion — GMP-ready within 7 days.
Industry Applications
Industries That Require Stability Chamber Validation
Pharmaceutical — Drug Products
Stability chamber validation for ICH long-term (25°C/60%RH), accelerated (40°C/75%RH), and intermediate (30°C/65%RH) storage studies per ICH Q1A(R2), Schedule M, and CDSCO requirements.
Know MoreAPI / Bulk Drug Manufacturers
Stability chamber IQ/OQ/PQ for API stability studies per ICH Q1A(R2) and FDA 21 CFR Part 211.166 — required for registration dossiers (CTD Module 3.2.P.8).
Know MoreBiologics & Biosimilars
Low-temperature (2–8°C) and -20°C/-80°C freezer validation for biologic drug products, biosimilars, and vaccines per WHO TRS 953 and ICH Q5C.
Know MoreClinical Trial Material (CTM)
Stability chamber validation for clinical phase I/II/III temperature-controlled storage of investigational medicinal products (IMP) per EU CTR 536/2014 and Schedule Y.
Know MoreMedical Devices & Diagnostics
Environmental chamber validation for medical device real-time and accelerated ageing studies per ISO 10993, ASTM F1980, and CDSCO MDMS requirements.
Know MoreHospital Pharmacy & Blood Banks
Cold room and blood bank refrigerator qualification for hospital pharmacies and blood banks per WHO TRS 961 and NABH standards.
Know MoreNutraceuticals & Food Testing
Temperature and humidity chamber validation for nutraceutical shelf-life studies, food stability testing, and FSSAI compliance.
Know MoreExport & CTD Dossier Filing
Stability chamber validation reports accepted for ICH CTD dossier filing in US FDA, EMA, TGA, Health Canada, and PMDA regulatory submissions.
Know MoreWhy Choose Prism
Two Decades of GMP Validation.
Zero Audit Observations.
Since 2004, every stability chamber validation report by Prism has been accepted by USFDA, WHO GMP, EU GMP, GPCB, and NABH auditors without a single observation or rework.
— STANDARDS & COMPLIANCE —
Standards We Follow for Stability Chamber Validation
ICH Q1A(R2):2003
Stability testing of new drug substances
ICH Q5C:1995
Stability testing: biotechnology products
EU GMP Annex 7
Manufacture of herbal medicinal products
WHO TRS 953
WHO guidelines for stability testing
WHO TRS 961
WHO supplement TRS 961 — stability
FDA 21 CFR 211.166
US stability testing requirements
ISPE Baseline Guide
ISPE Good Practice Guide — humidity
ISO/IEC 17025:2017
NABL accreditation CC-2480
NABL CC-2480 + ICH Track Record
All T&H data loggers are NABL calibrated under CC-2480 (ISO/IEC 17025:2017) — every stability chamber validation report is accepted for ICH CTD dossier filing and all global regulatory submissions.
400+
Chambers Qualified
0
Audit Observations
— NON-GMP QUALIFICATION —
Stability Chamber Qualification for Non-Pharma
R&D labs, hospitals, food labs, and cosmetics manufacturers also need calibrated, stable T&H environments. Prism offers cost-effective stability chamber qualification for non-GMP applications using the same NABL-calibrated instruments.
NABL-Traceable T&H Instruments
NABL CC-2480 calibrated data loggers regardless of whether the qualification is GMP or non-GMP.
3–5 Day Completion
Simple T&H mapping completed in 3–5 days; full DQ/IQ/OQ/PQ takes 7–10 days.
Flexible Scope
T&H mapping only or full IQ/OQ/PQ — choose what you need.
Onsite — No Downtime
All testing at your facility around your schedule.
Onsite Coverage
Serving All
of Gujarat
Validation engineers based in Ahmedabad cover the full Gujarat pharma corridor onsite.
— VALIDATION SERVICES —
Validation Services We Offer
8 GMP validation services — all under one NABL-accredited roof. View all services →
Clean Room Validation
4 test parameters
- ISO 14644-1 Particle Count
- HEPA Filter PAO/DOP Test
- ACH & Airflow Velocity
- Differential Pressure Cascade
Autoclave / Sterilizer
4 test parameters
- Temperature Distribution Study
- Heat Penetration Study
- IQ / OQ / PQ Documentation
- Bowie-Dick & Leak Test
Stability Chamber
4 test parameters
- T&H Mapping (ICH Q1A)
- Uniformity Verification
- IQ / OQ / PQ Protocols
- Data Logger Calibration
DQ / IQ / OQ / PQ
4 test parameters
- Design Qualification (DQ)
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
AHU Validation
4 test parameters
- Airflow & Velocity Balancing
- HEPA Integrity Testing
- Pressure & ACH Verification
- Filter Efficiency Testing
PLC / Software Validation
4 test parameters
- 21 CFR Part 11 Compliance
- GAMP 5 Validation
- IQ / OQ / PQ for Software
- Audit Trail Verification
Thermography / Oven
4 test parameters
- Hot Air Oven Temperature Mapping
- Thermal Distribution Study
- Infrared Thermography
- IQ / OQ / PQ Documentation
Performance Qualification
4 test parameters
- Worst-Case PQ Testing
- Process Performance Study
- Statistical Acceptance Criteria
- GMP-Ready PQ Report
— Our Clients —
Trusted By Gujarat's Leading Pharma Companies
— CLIENT VOICES —
What Our Stability Chamber Validation Clients Say
Prism mapped 8 stability chambers in our new stability lab — IQ/OQ/PQ protocols, T&H distribution studies (ICH Q1A), and data logger calibration all done in one week. WHO GMP audit passed without any observations on stability chamber qualification.
Annual stability chamber requalification by Prism — all 5 chambers mapped in 3 days. Prism's report includes spatial and temporal T&H distribution data, uniformity verification, setpoint accuracy, and CAPA records. Accepted in USFDA inspection.
Prism stability chamber validation package for our new ICH Zone IVb chambers. T&H mapping at ICH set points, door open/close study, power failure study. Full IQ/OQ/PQ report in GMP format — submitted to CDSCO without revision.
Prism mapped 8 stability chambers in our new stability lab — IQ/OQ/PQ protocols, T&H distribution studies (ICH Q1A), and data logger calibration all done in one week. WHO GMP audit passed without any observations on stability chamber qualification.
Annual stability chamber requalification by Prism — all 5 chambers mapped in 3 days. Prism's report includes spatial and temporal T&H distribution data, uniformity verification, setpoint accuracy, and CAPA records. Accepted in USFDA inspection.
Prism stability chamber validation package for our new ICH Zone IVb chambers. T&H mapping at ICH set points, door open/close study, power failure study. Full IQ/OQ/PQ report in GMP format — submitted to CDSCO without revision.
Prism mapped 8 stability chambers in our new stability lab — IQ/OQ/PQ protocols, T&H distribution studies (ICH Q1A), and data logger calibration all done in one week. WHO GMP audit passed without any observations on stability chamber qualification.
Annual stability chamber requalification by Prism — all 5 chambers mapped in 3 days. Prism's report includes spatial and temporal T&H distribution data, uniformity verification, setpoint accuracy, and CAPA records. Accepted in USFDA inspection.
Prism stability chamber validation package for our new ICH Zone IVb chambers. T&H mapping at ICH set points, door open/close study, power failure study. Full IQ/OQ/PQ report in GMP format — submitted to CDSCO without revision.
Get In Touch
Request a Free Quote
Tell us your chamber make, model, volume, ICH set points required, and regulatory requirement. Our team responds within 2 business hours.
— FAQ —
Stability Chamber Validation — Frequently Asked Questions
Need Stability Chamber Validation in Gujarat?
Call or WhatsApp — we reply within the hour. Onsite across Gujarat, ICH-compliant report guaranteed.
Prism Calibration Centre · F 101, Rudraksh Complex 2, Phase 3, GIDC Vatva, Ahmedabad, Gujarat 382445
