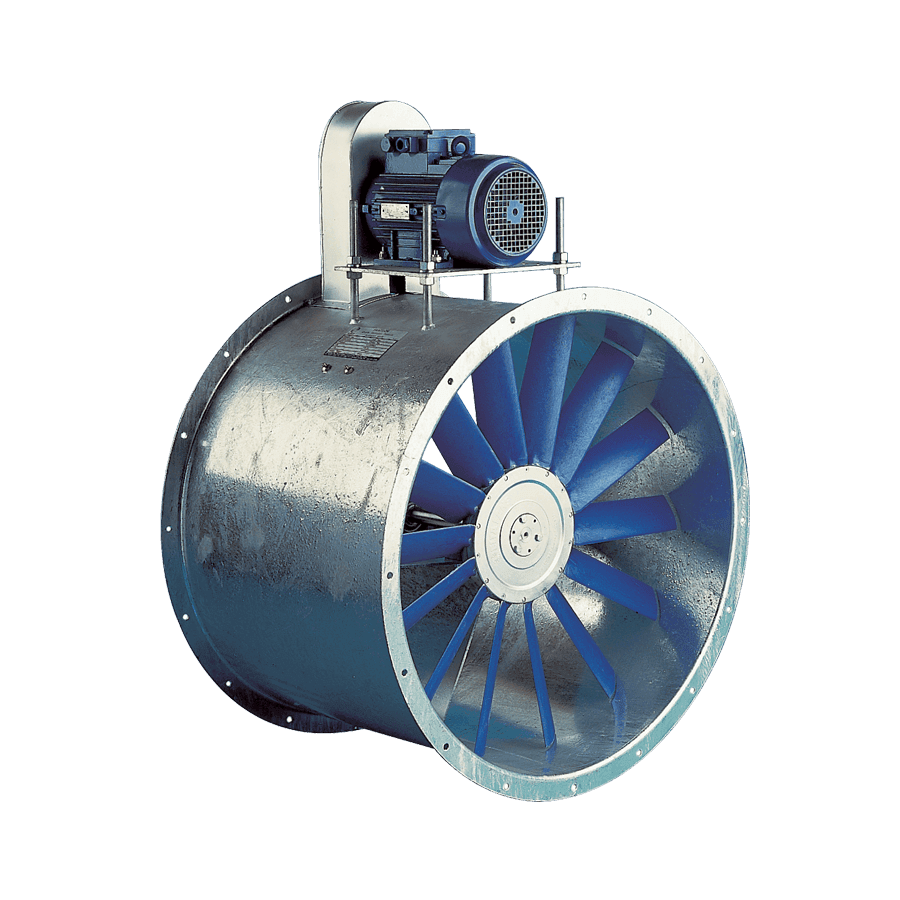

Axial Flow Fan
High-Volume Industrial Ventilation Fan
Industrial axial flow fans engineered for large-volume air movement in HVAC, tunnel ventilation, process cooling, and industrial exhaust applications across Gujarat.
Axial Fan
— Product Overview —
What Is a Axial Fan?
An axial flow fan moves air parallel to the fan's shaft axis — the airflow enters and exits in the same direction. This design is ideally suited for high-volume, low-pressure air movement applications such as industrial ventilation, HVAC systems, tunnel exhaust, cooling towers, and fume extraction.
E Industries manufactures axial flow fans in cast aluminium, fabricated aluminium, FRP (fibreglass reinforced plastic), and mild steel construction. Blade pitch is adjustable to match varying airflow demands, and motors are selected to meet IE2/IE3 energy efficiency standards. All units are statically and dynamically balanced to minimise vibration and noise.
Airflow & Pressure
- Volume flow: 500 – 3,00,000 m³/hr
- Static pressure: up to 100mm WG
- Adjustable blade pitch: ±20°
- Reversible airflow models available
Construction
- Cast aluminium impeller
- FRP impeller for corrosive duty
- Mild steel / SS304 casing
- IP54 to IP65 motor protection
Drive Options
- Direct drive (motor on shaft)
- Belt & pulley drive
- Variable frequency drive (VFD) compatible
- IE2 / IE3 motor standards
Mounting & Installation
- Ducted or open installation
- Horizontal / vertical mounting
- Flanged or ring mount
- Anti-vibration mounts supplied
— Why It Matters —
Why Your Industry Needs This Axial Fan
GPCB & Pollution Compliance
Industrial facilities in Gujarat must maintain adequate ventilation and exhaust to meet GPCB air quality standards. Properly sized axial fans ensure compliance with ambient air quality norms and stack emission requirements.
Worker Safety & OSHA
Inadequate ventilation in chemical plants, paint shops, foundries, and confined spaces creates toxic gas buildup risks. Axial fans provide continuous air changes to keep worker environments safe per OSHA and factory act guidelines.
Process Temperature Control
Many industrial processes generate heat that degrades product quality and equipment life. Axial fans provide targeted cooling air to maintain optimal process temperatures in furnaces, drying ovens, and heat treatment areas.
Energy-Efficient Airflow
Modern axial fans with EC motors and adjustable blade pitch consume 30–50% less energy than older designs. Variable pitch allows operators to match actual airflow to process requirements, reducing power costs significantly.
— Applications —
Industries We Serve
— Product Range —
Available Models & Variants
Standard models available — custom engineering also available for your specific requirements
AFF-300
300mm diameter, up to 3,000 m³/hr
AFF-500
500mm diameter, up to 12,000 m³/hr
AFF-800
800mm diameter, up to 50,000 m³/hr
AFF-1200
1200mm diameter, up to 1,50,000 m³/hr
AFF-1600
1600mm diameter, up to 3,00,000 m³/hr
AFF-FRP
FRP construction for corrosive / chemical duty
Price on Request
Axial Flow Fan Pricing
Every unit is quoted individually — price depends on capacity, material of construction, and your duty conditions. Tell us the application and our engineers will size it and quote it.
- Detailed written quotation within 24 hours
- Free technical sizing by our engineering team
- No obligation — compare before you commit
— Why Choose Us —
Why Buy from Prism Group
Manufacturing, compliance, calibration, and after-sales — all under one roof, backed by 20+ years serving Gujarat's industries.
Manufactured in Gujarat
Built at our Ahmedabad facility — shorter lead times, lower freight, and an engineer who can reach your plant the same day.
Built to Your Spec
Not a catalogue-only supplier. Every unit is sized to your actual airflow, pressure, temperature, and material duty.
GPCB & Compliance Ready
Designed to clear GPCB norms, BIS material standards, and WHO GMP requirements — so your consent renewal is never at risk.
NABL Calibration In-House
Prism Calibration Centre (NABL CC-2480) certifies the instruments on your equipment — no chasing a third-party lab.
Installation & AMC
Commissioning, annual maintenance contracts, spare parts, and emergency call-outs from one accountable partner.
20+ Years, 5,000+ Clients
Serving Gujarat industry since 2004 — pharmaceutical, chemical, cement, textile, and food processing plants across every GIDC zone.
Delivery & Installation
Supplying Across
Gujarat
Factory dispatch from Ahmedabad with on-site installation and commissioning support across every major GIDC zone in Gujarat.
— Our Product Range —
Related Products
Complete APCD & HVAC range manufactured by E Industries
Dust Collector
GPCB-Compliant Industrial Dust Collection System
View DetailsForward Curved Centrifugal Fan
Belt-Driven High-Pressure HVAC & Industrial Fan
View DetailsIndustrial Air Filters
G3 to H14 HEPA — Complete Industrial Filtration
View DetailsRotary Airlock Valve
Precision Bulk Solids Handling with Pressure Seal
View DetailsAir Blowers
Industrial Centrifugal & Roots Blowers
View DetailsCyclone Separator
No Moving Parts — Zero Maintenance Separation
View DetailsAir Handling Unit (AHU)
1,000–50,000 CFM Custom-Built HVAC
View DetailsRequest a Quote
Get a Free Quote for Axial Fan
Tell us your application — capacity, pressure, material, and industry. Our engineering team responds within 24 hours with a detailed technical and commercial proposal.
— FAQ —
Axial Fan — Frequently Asked Questions
Need a Axial Fan for Your Plant?
Call or WhatsApp with your application details — capacity, pressure, temperature, and material. We'll respond with a technical recommendation and price within 24 hours.
