Rotary Airlock Valve
Precision Bulk Solids Handling with Pressure Seal
Precision-engineered rotary airlock valves for continuous bulk solids discharge from hoppers, silos, and dust collectors while maintaining pneumatic pressure differentials.
Airlock Valve
— Product Overview —
What Is a Airlock Valve?

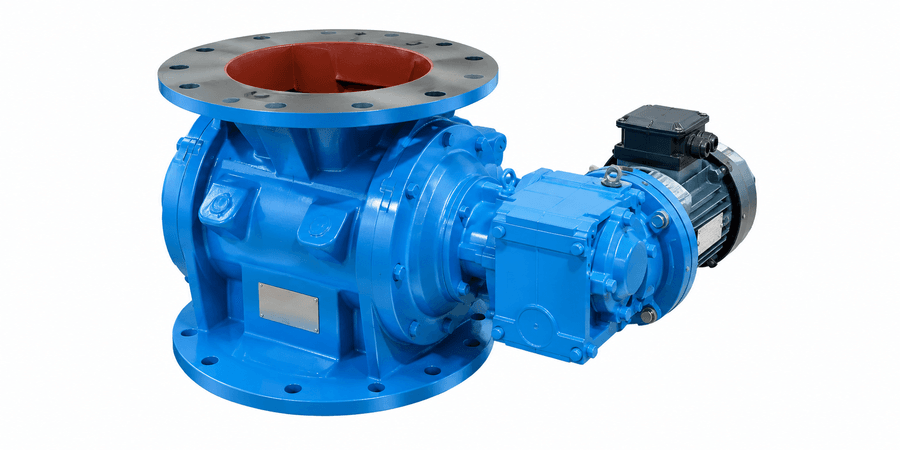

A rotary airlock valve (also called a rotary feeder or cellular wheel airlock) is a valve used to discharge bulk solids (powders, granules, pellets, dust) from a hopper or dust collector while maintaining a pressure differential across the valve. The rotating cellular wheel (rotor) with adjustable clearances between rotor blades and housing ensures continuous material flow without air leakage.
E Industries manufactures rotary airlock valves in a range of materials — cast iron (CI) for standard applications, SS304 for food and pharma, SS316 for aggressive chemicals and sterile applications, and Teflon-coated for sticky or abrasive materials. Sizes range from 50mm to 600mm in both standard and heavy-duty configurations.
Standard Specifications
- Sizes: 50, 100, 150, 200, 250, 300, 400, 500, 600mm
- Rotor speed: 5–30 RPM (geared motor)
- Clearance: adjustable 0.05–0.3mm
- Max temperature: up to 280°C
Materials of Construction
- Housing & endplates: CI / SS304 / SS316
- Rotor: CI / SS304 / SS316
- Shaft seals: mechanical / lip / labyrinth
- Internal coating: Teflon / rubber / Ni-PTFE
Drive System
- Gear motor (standard helical/worm)
- Variable speed drive (VFD) compatible
- Chain drive option for high torque
- Coupling: flexible jaw type
Special Designs
- Drop-through (gravity discharge) type
- Side-entry rotary feeder
- Blow-through airlock for pneumatic conveying
- Adjustable rotor end-gap design
— Why It Matters —
Why Your Industry Needs This Airlock Valve
Continuous Dust Collector Discharge
Pulse-jet bag filters and cyclone dust collectors accumulate dust in hoppers that must be continuously or intermittently discharged. Without a rotary airlock, opening the hopper equalises pressure and disrupts the collection system. The airlock maintains the negative pressure while allowing controlled dust discharge.
Pneumatic Conveying System Feeding
In pneumatic conveying systems, the rotary feeder meters bulk solid material into the conveying air stream at a controlled, consistent rate. Metering accuracy directly affects conveying efficiency, product quality, and batch accuracy in pharmaceutical and food mixing processes.
Silo & Bin Discharge Control
Large silos storing cement, fly ash, grain, sugar, or chemicals require controlled discharge rates for downstream process consistency. Rotary airlock valves provide variable speed discharge (via VFD) without the bridging and flooding problems of gravity discharge gates.
Preventing Air Ingress & Product Spillage
In negative pressure conveying and dust collection systems, an uncontrolled outlet allows false air ingress that degrades system performance. The rotary airlock acts as a dynamic seal, maintaining system pressure while allowing solids to pass — critical for energy efficiency and process control.
— Applications —
Industries We Serve
— Product Range —
Available Models & Variants
Standard models available — custom engineering also available for your specific requirements
RAV-100-CI
100mm, cast iron, standard duty
RAV-200-SS304
200mm, SS304, food/pharma grade
RAV-300-SS316
300mm, SS316, chemical resistant
RAV-400-HD
400mm, heavy duty for abrasive dust
RAV-600-BT
600mm, blow-through for pneumatic conveying
RAV-ATEX
Any size, explosion-proof for combustible dust
Price on Request
Rotary Airlock Valve Pricing
Every unit is quoted individually — price depends on capacity, material of construction, and your duty conditions. Tell us the application and our engineers will size it and quote it.
- Detailed written quotation within 24 hours
- Free technical sizing by our engineering team
- No obligation — compare before you commit
— Why Choose Us —
Why Buy from Prism Group
Manufacturing, compliance, calibration, and after-sales — all under one roof, backed by 20+ years serving Gujarat's industries.
Manufactured in Gujarat
Built at our Ahmedabad facility — shorter lead times, lower freight, and an engineer who can reach your plant the same day.
Built to Your Spec
Not a catalogue-only supplier. Every unit is sized to your actual airflow, pressure, temperature, and material duty.
GPCB & Compliance Ready
Designed to clear GPCB norms, BIS material standards, and WHO GMP requirements — so your consent renewal is never at risk.
NABL Calibration In-House
Prism Calibration Centre (NABL CC-2480) certifies the instruments on your equipment — no chasing a third-party lab.
Installation & AMC
Commissioning, annual maintenance contracts, spare parts, and emergency call-outs from one accountable partner.
20+ Years, 5,000+ Clients
Serving Gujarat industry since 2004 — pharmaceutical, chemical, cement, textile, and food processing plants across every GIDC zone.
Delivery & Installation
Supplying Across
Gujarat
Factory dispatch from Ahmedabad with on-site installation and commissioning support across every major GIDC zone in Gujarat.
