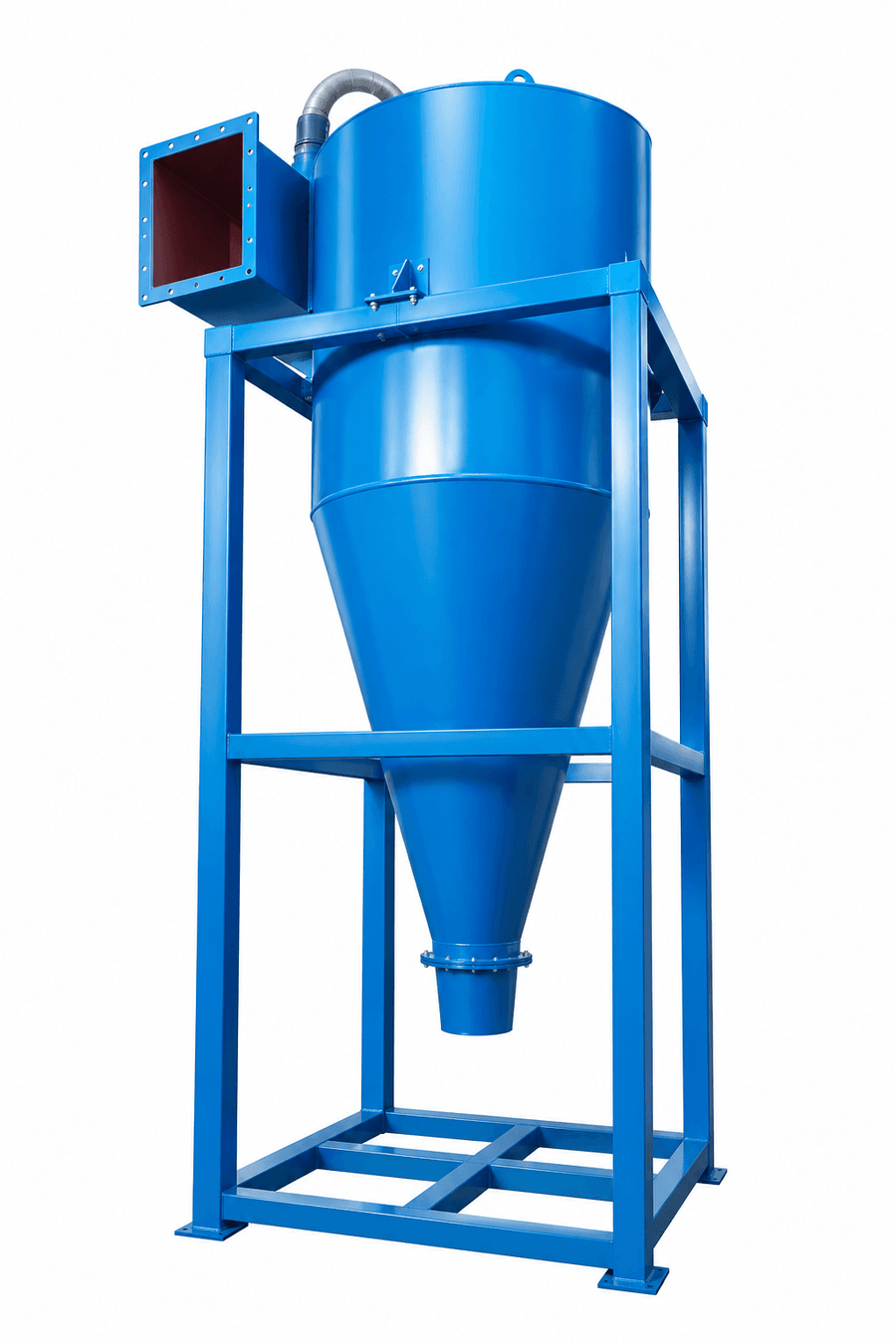

Cyclone Separator
No Moving Parts — Zero Maintenance Separation
High-efficiency cyclone separators for industrial gas-solid separation — no moving parts, no filters, no consumables. Continuous operation with zero maintenance downtime.
Cyclone
— Product Overview —
What Is a Cyclone?
A cyclone separator uses centrifugal force — not filter media — to separate solid particles or liquid droplets from a gas stream. Dust-laden gas enters tangentially, creating a spinning vortex. Centrifugal force throws particles outward to the cyclone wall, where they spiral down into a collection hopper. Clean gas exits through the central vortex finder at the top.
Because cyclones have no moving parts and no filter media, they require virtually no maintenance and can operate continuously 24/7 in harsh conditions including high temperatures (up to 500°C), high dust loading, and corrosive or abrasive gas streams. E Industries manufactures standard single cyclones, multi-cyclone batteries, and high-efficiency cyclones in CI, mild steel, SS304, and abrasion-resistant alloy construction.
Performance
- Particle size cut: D50 at 5–10µ (high efficiency)
- Volume flow: 200 – 50,000 m³/hr per unit
- Multi-cyclone arrays for larger flows
- Separation efficiency: 70–95% at 10µ
Construction
- Body: MS, CI, SS304, SS316
- Abrasion-resistant lining: AR450, rubber, ceramic
- Cone: replaceable for abrasive service
- Temperature rating: up to 500°C
Pressure Drop
- Typical pressure loss: 500–1500 Pa
- Low-resistance design option: <500 Pa
- Inlet velocity: 12–25 m/s recommended
- Tangential / helical inlet options
Discharge Options
- Gravity discharge to hopper
- Rotary airlock valve discharge
- Trickle valve (no-return flap)
- Wet-bottom sluice for liquid seal
— Why It Matters —
Why Your Industry Needs This Cyclone
Zero Maintenance Operation
Unlike bag filters that require periodic filter replacement, cyclone separators have no consumables, no filter bags, and no moving parts. This makes them ideal for remote locations, continuous processes where shutdown is not possible, and applications handling very hot, sticky, or abrasive dust.
Pre-Separator for Bag Filters
Installing a cyclone upstream of a bag filter removes 80–95% of the coarse dust load before it reaches the bags. This dramatically extends bag filter life, reduces pulse-cleaning frequency, and lowers the operational cost of the total system.
GPCB Stack Compliance for Coarse Dust
Many brick kilns, foundries, wood processing units, and grain mills emit primarily coarse particulate matter (>10µ). A properly sized cyclone can achieve SPM levels compliant with GPCB norms without the capital and operating cost of a bag filter system.
Product Recovery in Process Industries
In spray drying, flash drying, and fluid bed operations in food and pharmaceutical processing, the product itself is the airborne solid. Cyclones recover valuable product from the exhaust air stream, reducing product loss and preventing atmospheric discharge of saleable or regulated materials.
— Applications —
Industries We Serve
— Product Range —
Available Models & Variants
Standard models available — custom engineering also available for your specific requirements
CS-300
300mm body diameter, up to 1,000 m³/hr
CS-600
600mm body diameter, up to 5,000 m³/hr
CS-1000
1000mm body diameter, up to 15,000 m³/hr
CS-1500
1500mm body diameter, up to 40,000 m³/hr
CS-MULTI
Multi-cyclone battery for >50,000 m³/hr
CS-HT
High-temperature version up to 500°C
Price on Request
Cyclone Separator Pricing
Every unit is quoted individually — price depends on capacity, material of construction, and your duty conditions. Tell us the application and our engineers will size it and quote it.
- Detailed written quotation within 24 hours
- Free technical sizing by our engineering team
- No obligation — compare before you commit
— Why Choose Us —
Why Buy from Prism Group
Manufacturing, compliance, calibration, and after-sales — all under one roof, backed by 20+ years serving Gujarat's industries.
Manufactured in Gujarat
Built at our Ahmedabad facility — shorter lead times, lower freight, and an engineer who can reach your plant the same day.
Built to Your Spec
Not a catalogue-only supplier. Every unit is sized to your actual airflow, pressure, temperature, and material duty.
GPCB & Compliance Ready
Designed to clear GPCB norms, BIS material standards, and WHO GMP requirements — so your consent renewal is never at risk.
NABL Calibration In-House
Prism Calibration Centre (NABL CC-2480) certifies the instruments on your equipment — no chasing a third-party lab.
Installation & AMC
Commissioning, annual maintenance contracts, spare parts, and emergency call-outs from one accountable partner.
20+ Years, 5,000+ Clients
Serving Gujarat industry since 2004 — pharmaceutical, chemical, cement, textile, and food processing plants across every GIDC zone.
Delivery & Installation
Supplying Across
Gujarat
Factory dispatch from Ahmedabad with on-site installation and commissioning support across every major GIDC zone in Gujarat.
