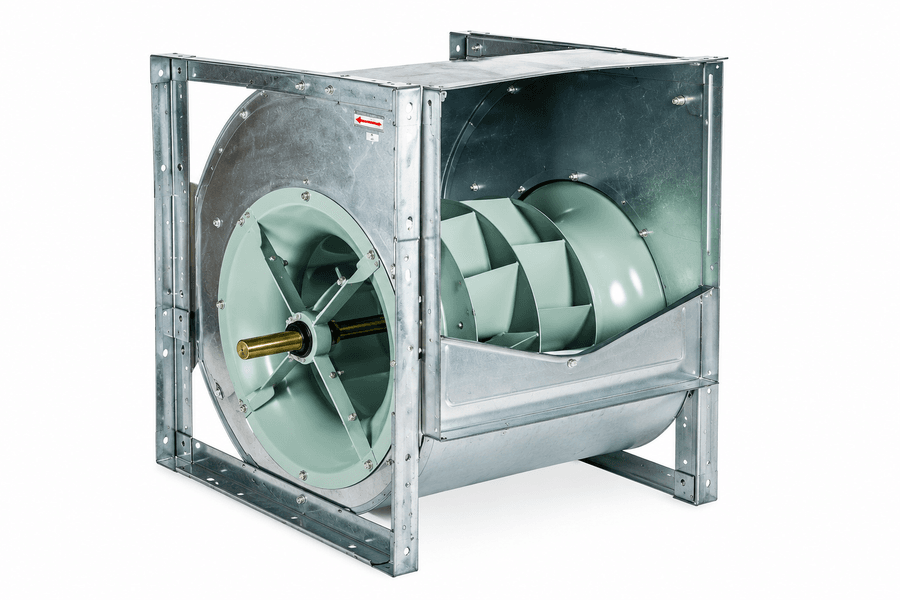

Forward Curved Centrifugal Fan
Belt-Driven High-Pressure HVAC & Industrial Fan
Belt-driven forward curved centrifugal fans delivering high-pressure air movement for HVAC air handling units, industrial process ventilation, and commercial buildings.
Centrifugal Fan
— Product Overview —
What Is a Centrifugal Fan?
A forward curved centrifugal fan uses a scroll casing to convert the kinetic energy of spinning air into static pressure. Air enters axially at the impeller eye and is discharged radially, allowing the fan to develop significantly higher pressures than axial fans. Forward curved blades generate higher airflow at lower speeds, making them ideal for HVAC air handling units and commercial ventilation.
E Industries manufactures belt-driven centrifugal fans in single inlet single width (SISW) and double inlet double width (DIDW) configurations. The belt-drive design allows easy speed adjustment by changing pulley sizes, enabling the same fan body to serve multiple airflow/pressure combinations. All impellers are dynamically balanced to G2.5 standard for vibration-free operation.
Performance Range
- Airflow: 200 – 2,50,000 m³/hr
- Static pressure: 50 – 2200 Pa
- Wheel diameter: 200 – 1400mm
- Temperature: -20°C to +120°C
Impeller Design
- Forward curved blades (FC)
- Backward inclined blades (BI)
- Backward curved aerofoil (BCAF)
- SISW and DIDW configurations
Drive System
- V-belt drive with adjustable motor base
- Taper-lock pulley for easy maintenance
- VFD-compatible with direct drive option
- Motor: 0.18 kW to 185 kW range
Construction
- Casing: GI / MS / SS304
- Impeller: GI / SS304 / FRP options
- Anti-corrosion epoxy paint
- Access doors for inspection
— Why It Matters —
Why Your Industry Needs This Centrifugal Fan
Long Duct Run HVAC Systems
Centrifugal fans generate the static pressure needed to push air through long duct networks, multiple bends, and high-resistance filters in HVAC systems. Axial fans cannot provide the required pressure for these applications.
Industrial Process Air Supply
Combustion air for furnaces, drying ovens, spray booths, and process dryers requires constant pressure and airflow. Centrifugal fans maintain stable performance across variable system resistance — critical for process quality.
Clean Room & Pharmaceutical HVAC
Pharmaceutical manufacturing requires precise pressure differentials between clean room zones to prevent contamination. HEPA-filtered AHUs using centrifugal fans maintain these differentials reliably across ISO Class 5–8 clean rooms.
Noise-Sensitive Applications
Forward curved centrifugal fans operate at lower RPM than axial fans for the same duty, producing significantly less noise — preferred for office buildings, hospitals, laboratories, and commercial HVAC.
— Applications —
Industries We Serve
— Product Range —
Available Models & Variants
Standard models available — custom engineering also available for your specific requirements
CF-200
200mm wheel, SISW, up to 500 m³/hr
CF-450
450mm wheel, SISW, up to 5,000 m³/hr
CF-710
710mm wheel, DIDW, up to 40,000 m³/hr
CF-1000
1000mm wheel, DIDW, up to 1,20,000 m³/hr
CF-1400
1400mm wheel, DIDW, up to 2,50,000 m³/hr
CF-AERO
Aerofoil backward curved, high-efficiency option
Price on Request
Forward Curved Centrifugal Fan Pricing
Every unit is quoted individually — price depends on capacity, material of construction, and your duty conditions. Tell us the application and our engineers will size it and quote it.
- Detailed written quotation within 24 hours
- Free technical sizing by our engineering team
- No obligation — compare before you commit
— Why Choose Us —
Why Buy from Prism Group
Manufacturing, compliance, calibration, and after-sales — all under one roof, backed by 20+ years serving Gujarat's industries.
Manufactured in Gujarat
Built at our Ahmedabad facility — shorter lead times, lower freight, and an engineer who can reach your plant the same day.
Built to Your Spec
Not a catalogue-only supplier. Every unit is sized to your actual airflow, pressure, temperature, and material duty.
GPCB & Compliance Ready
Designed to clear GPCB norms, BIS material standards, and WHO GMP requirements — so your consent renewal is never at risk.
NABL Calibration In-House
Prism Calibration Centre (NABL CC-2480) certifies the instruments on your equipment — no chasing a third-party lab.
Installation & AMC
Commissioning, annual maintenance contracts, spare parts, and emergency call-outs from one accountable partner.
20+ Years, 5,000+ Clients
Serving Gujarat industry since 2004 — pharmaceutical, chemical, cement, textile, and food processing plants across every GIDC zone.
Delivery & Installation
Supplying Across
Gujarat
Factory dispatch from Ahmedabad with on-site installation and commissioning support across every major GIDC zone in Gujarat.
